Product Description

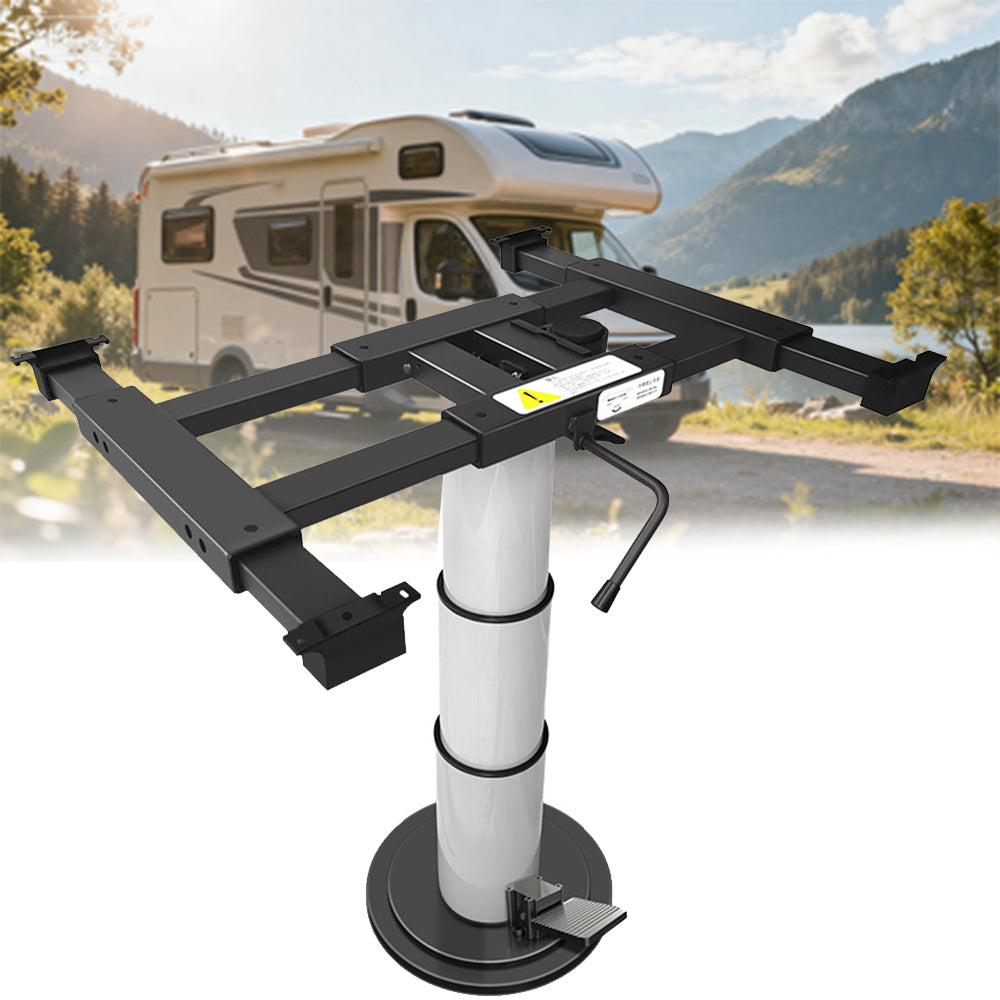

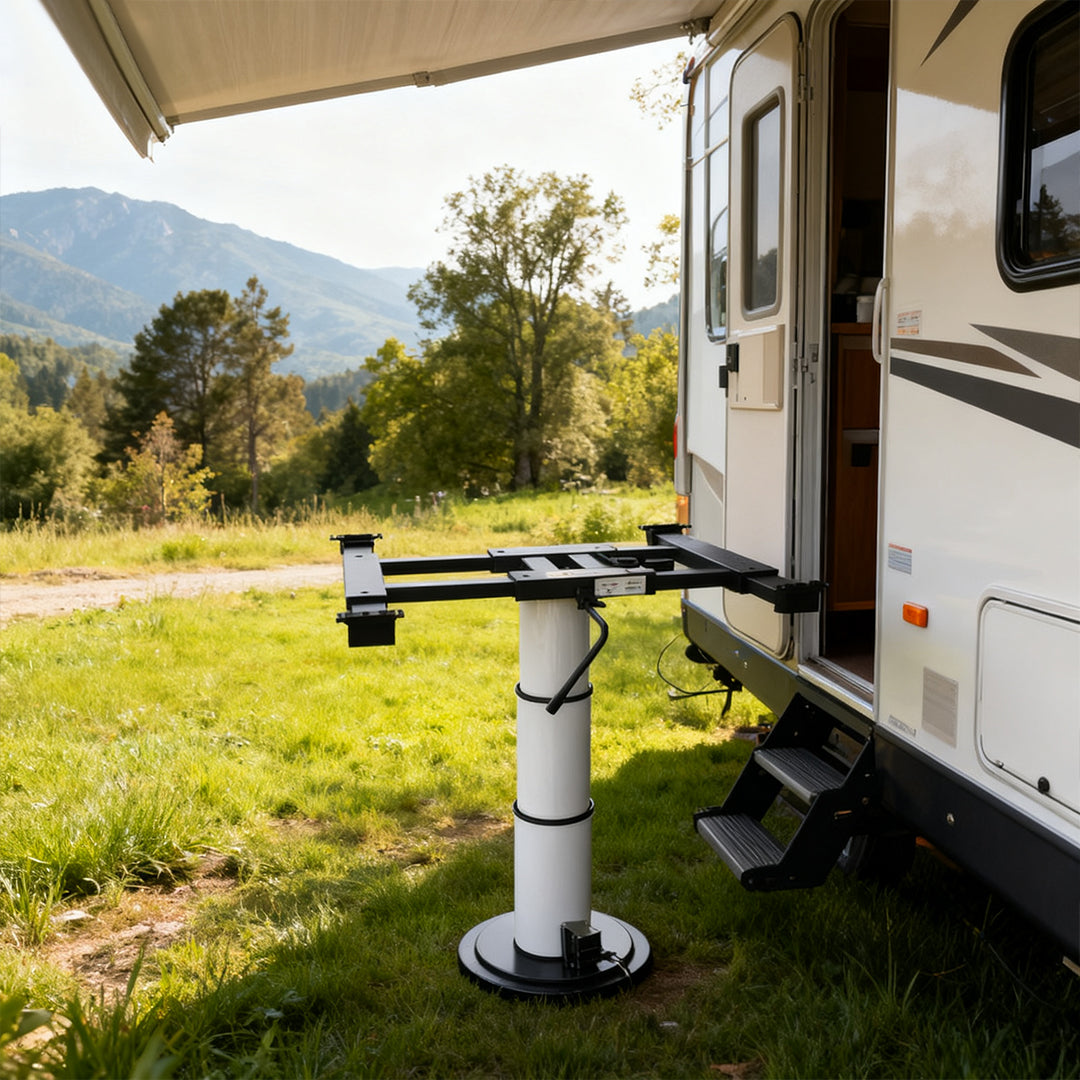

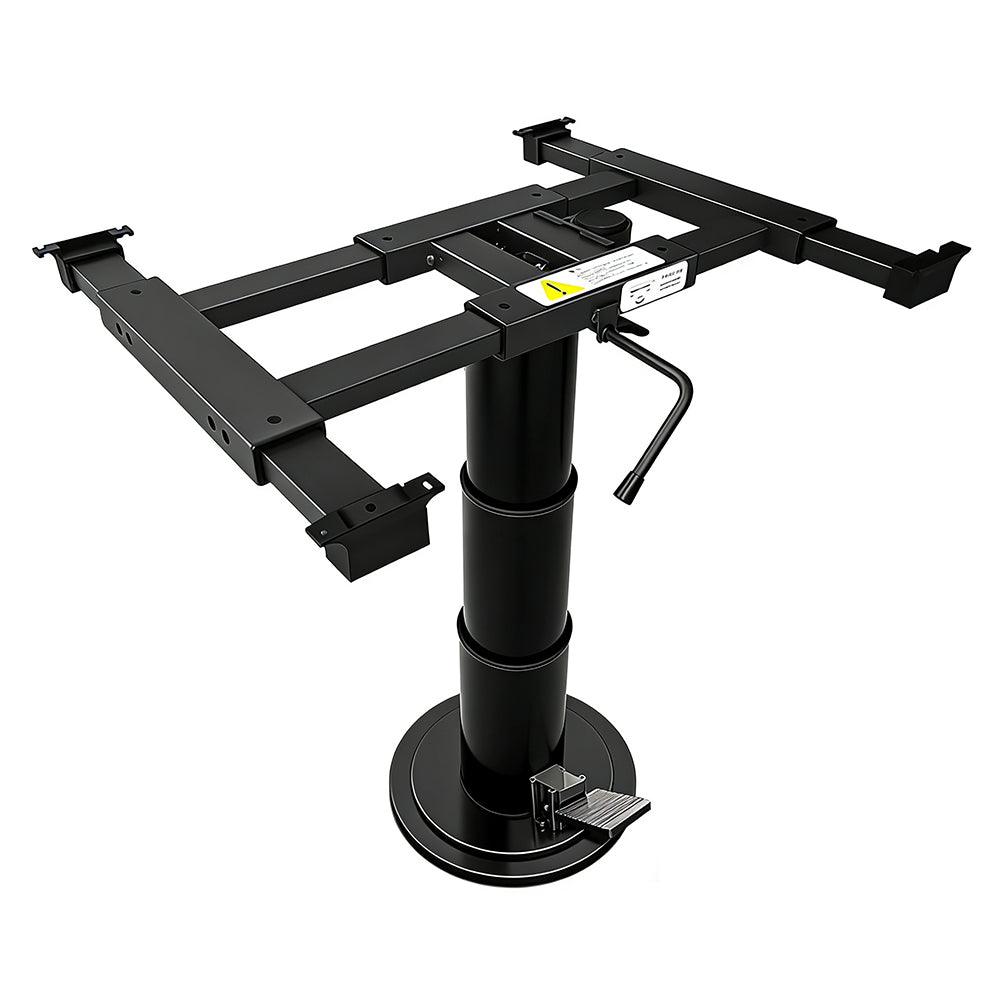

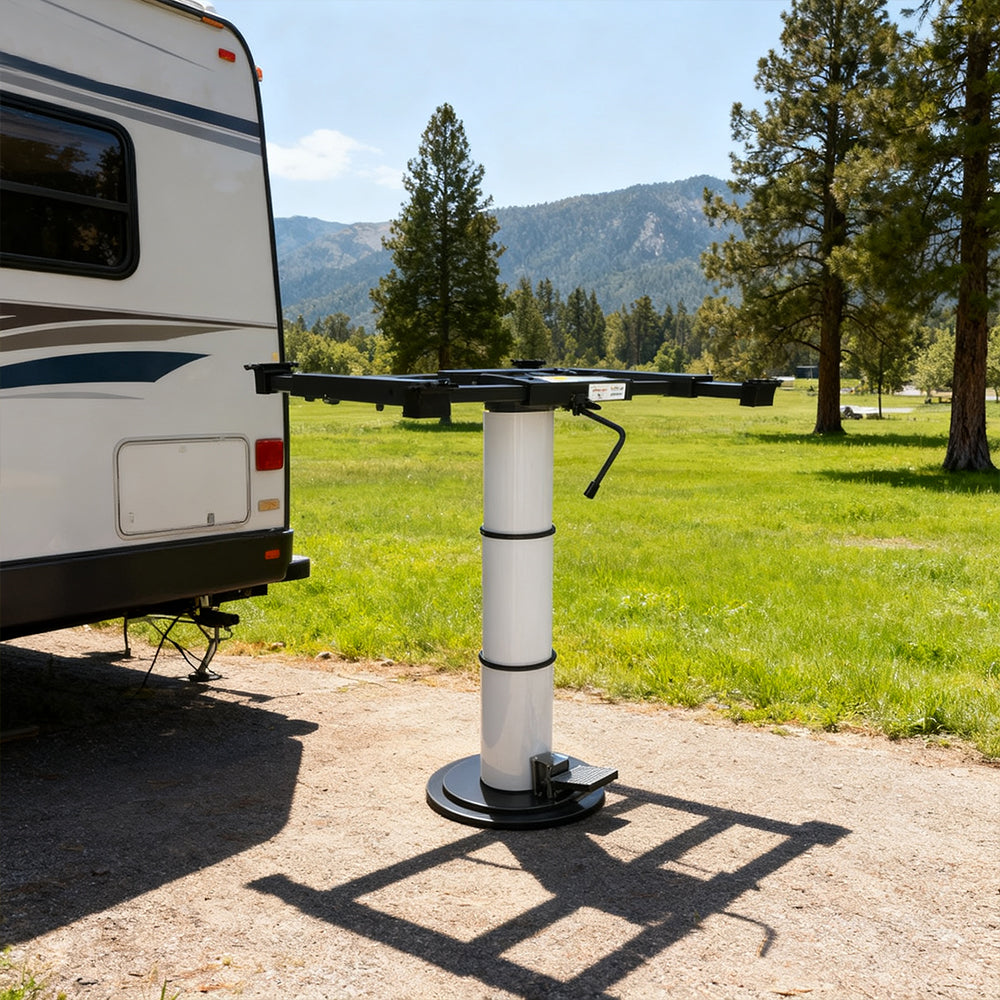

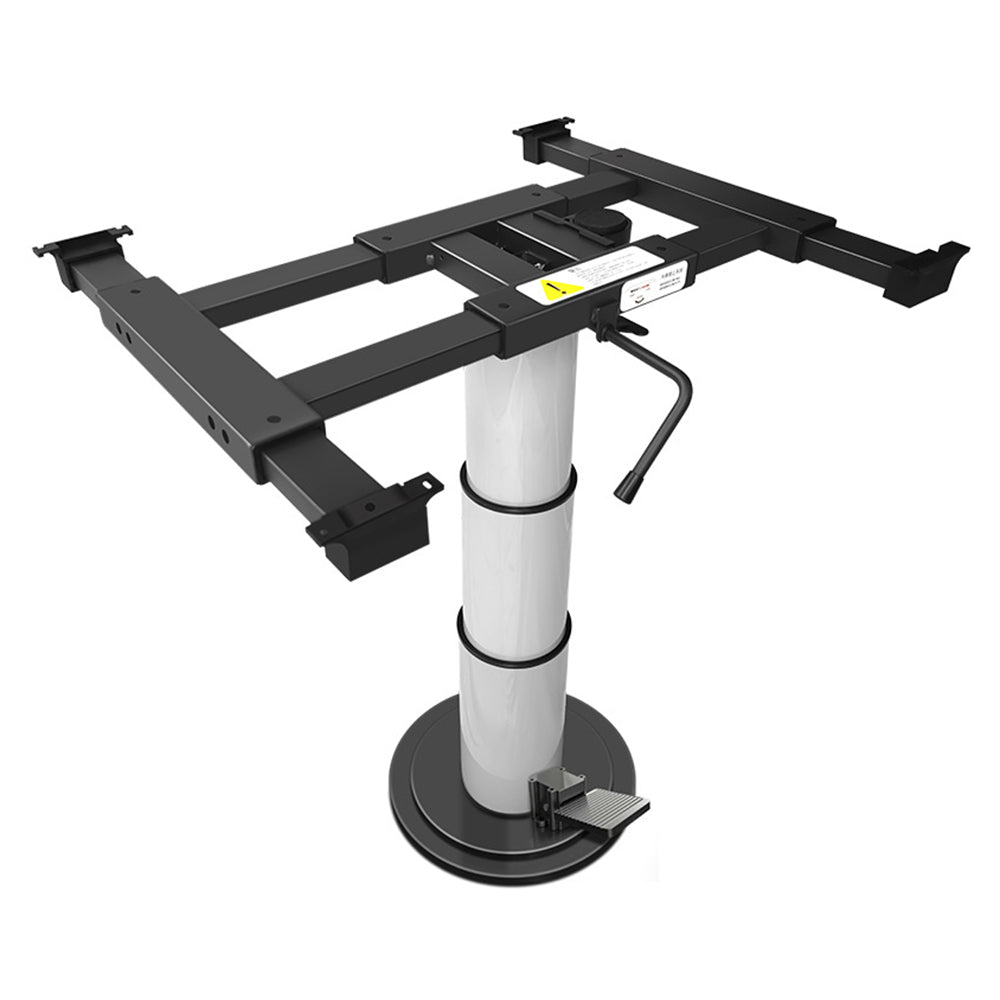

This multifunctional RV/Table Pedestal System is designed for caravans, motorhomes, campervans, and boats. It features a gas-spring assisted lift mechanism, allowing smooth height adjustment between low seating mode and dining/work table mode. The structure is made with reinforced steel tubing for high stability, while the exterior decorative sleeve is made from durable plastic and the operating handle is stainless steel.

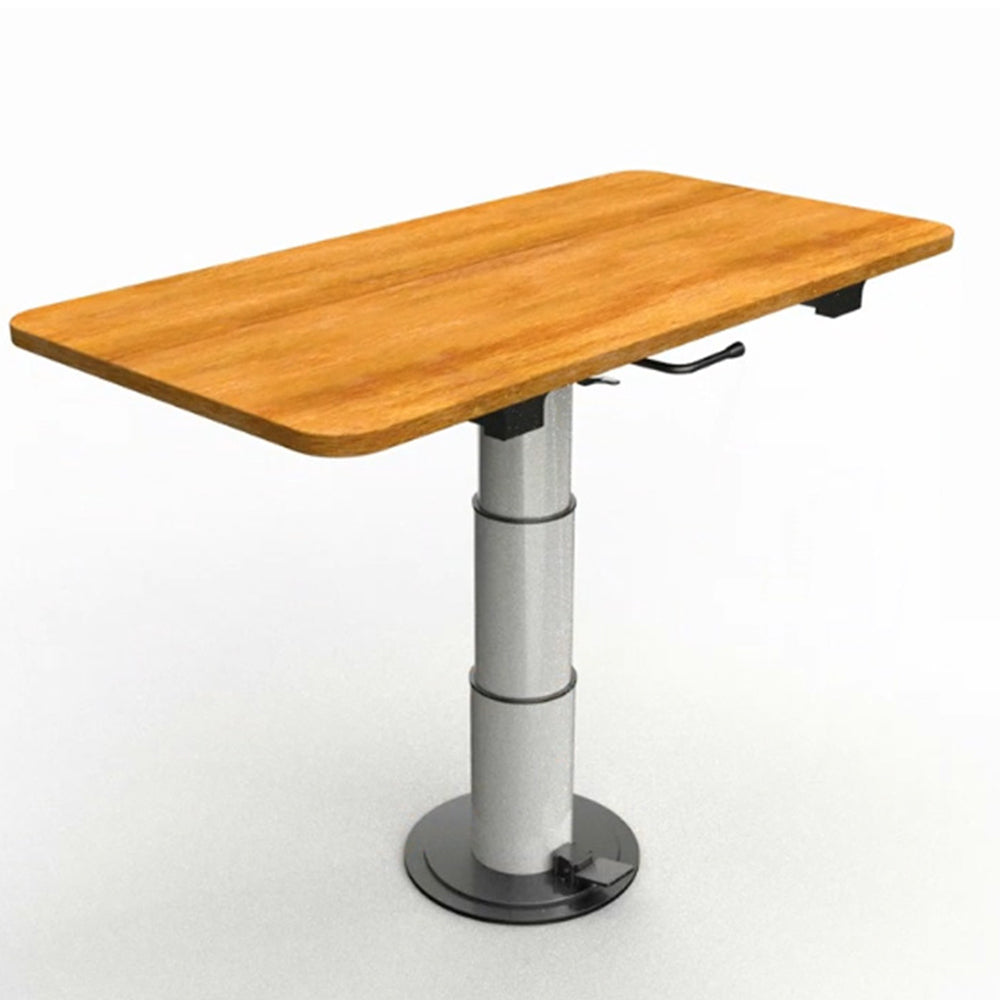

The pedestal supports 360° rotation, giving greater flexibility in tight interior spaces. It is suitable for table tops sized 100×80 cm or 75×75 cm, making it ideal for dinettes or convertible lounge areas.
Key Features

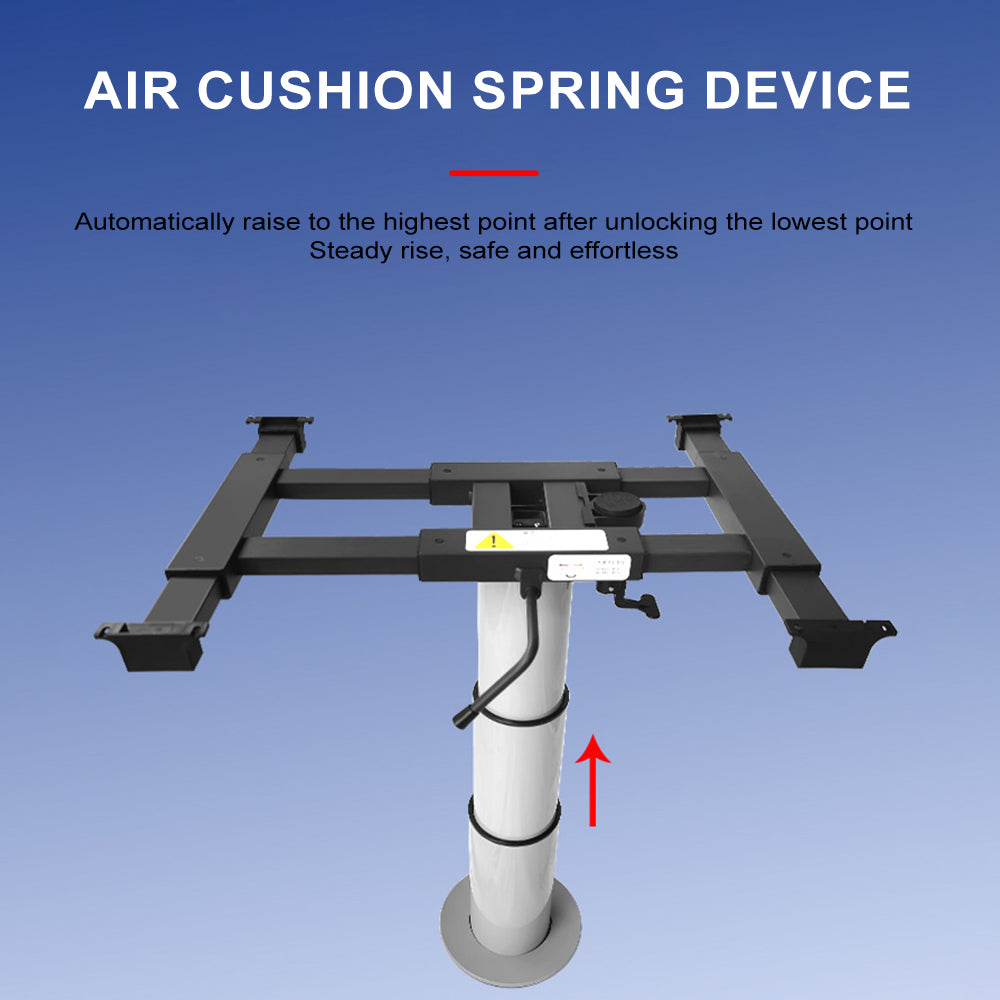

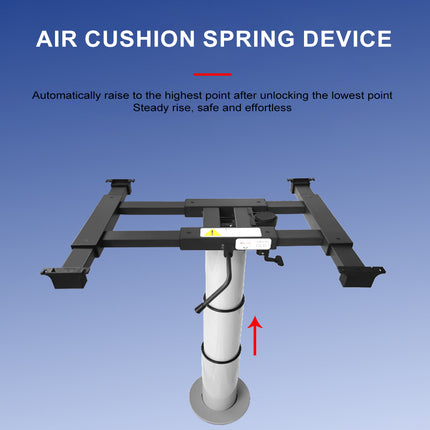

Gas-Spring Assisted Lifting – Smooth height adjustment with minimal effort
Wide Height Range – Converts easily between coffee-table height and dining table height
Optional 360° Swivel Function (Model SA0198) – Improved layout flexibility
Sturdy Steel Frame – Strong load capacity for RV and marine environments
Decorative Plastic Sleeve – Protects the inner steel tube and provides a clean look
Specifications
Model Options

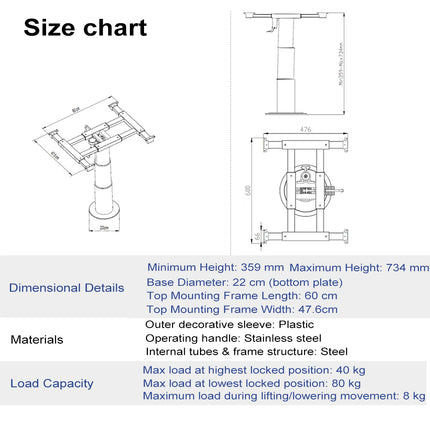

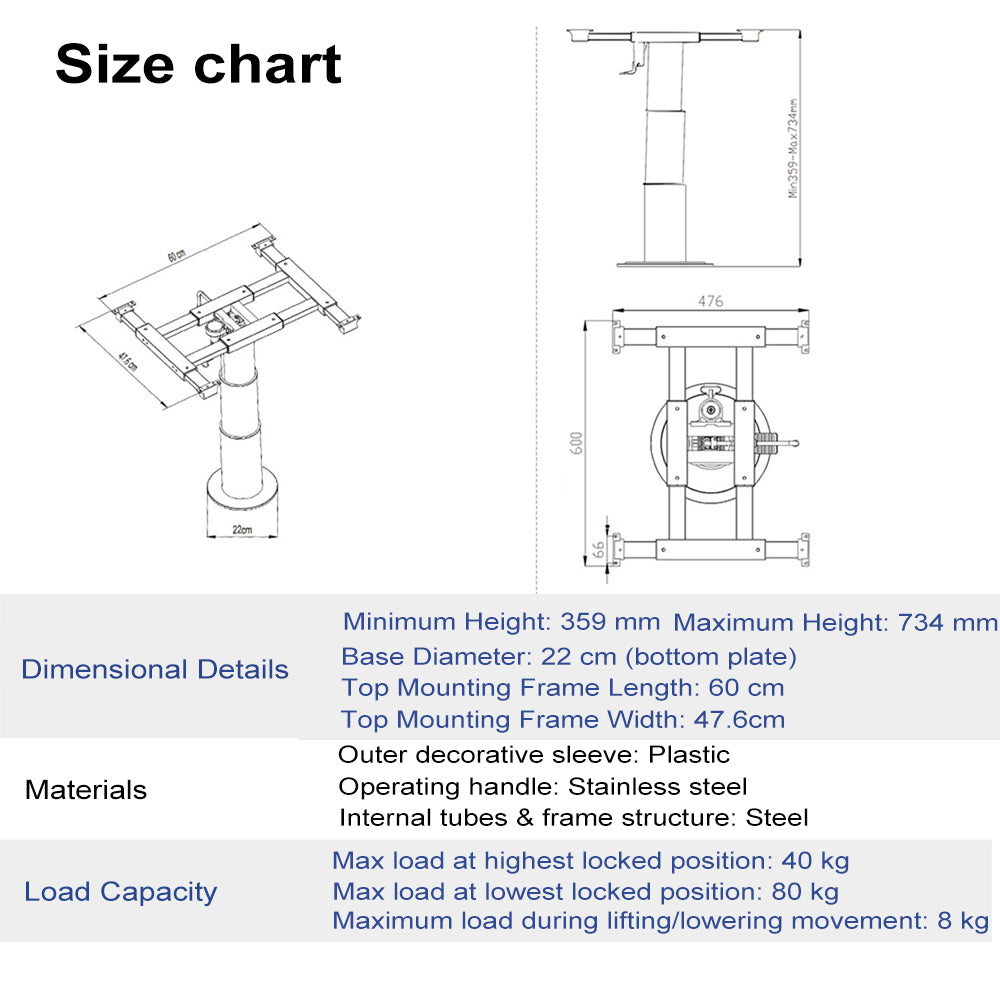

Dimensional Details
Minimum Height: 359 mm
Maximum Height: 734 mm
Base Diameter: 22 cm (bottom plate)
Top Mounting Frame Length: 60 cm
Top Mounting Frame Width: 47.6 cm
Materials
Outer decorative sleeve: Plastic
Operating handle: Stainless steel
Internal tubes & frame structure: Steel
Load Capacity
Max load at highest locked position: 40 kg
Max load at lowest locked position: 80 kg
Maximum load during lifting/lowering movement: 8 kg
Recommended Use Cases
Caravan / RV dining tables
Campervan convertible bed-table systems
Motorhome lounge tables
Boat & marine salon tables
Adjustable workstations in confined spaces
Note
Due to different monitor settings and lighting conditions, the actual color of the item may vary slightly from the pictures. Please allow a slight difference in dimensions due to manual measurement.
